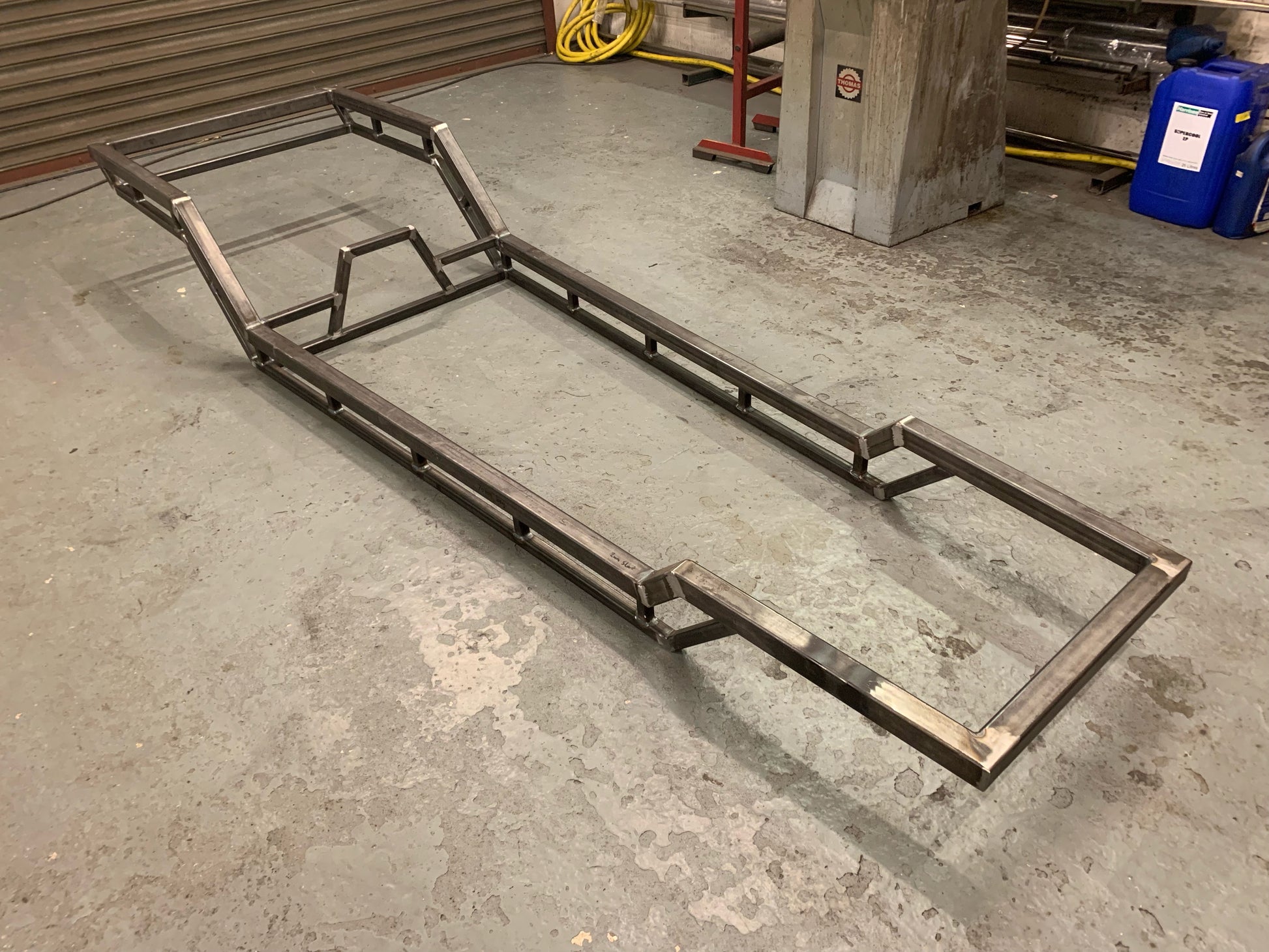

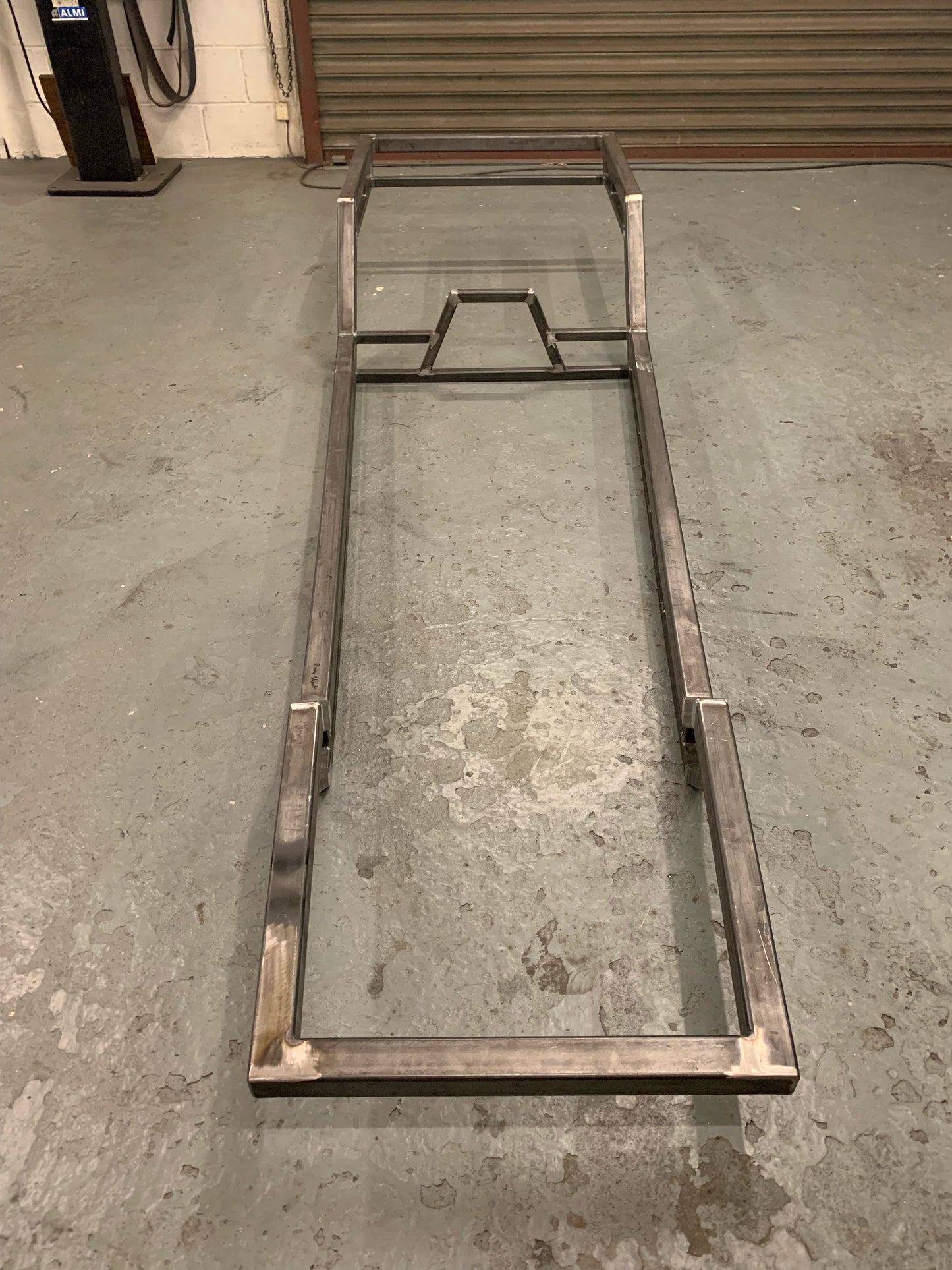

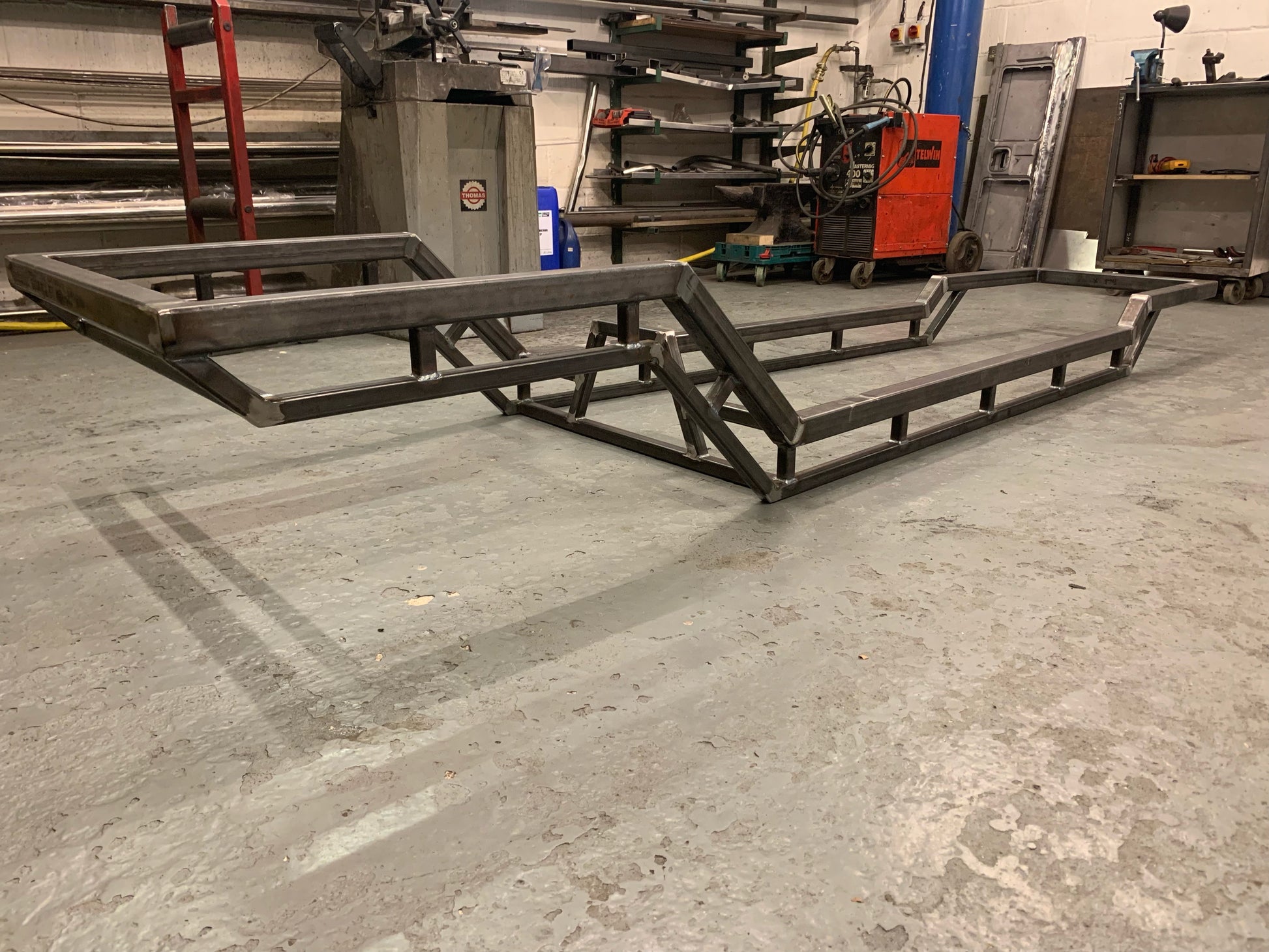

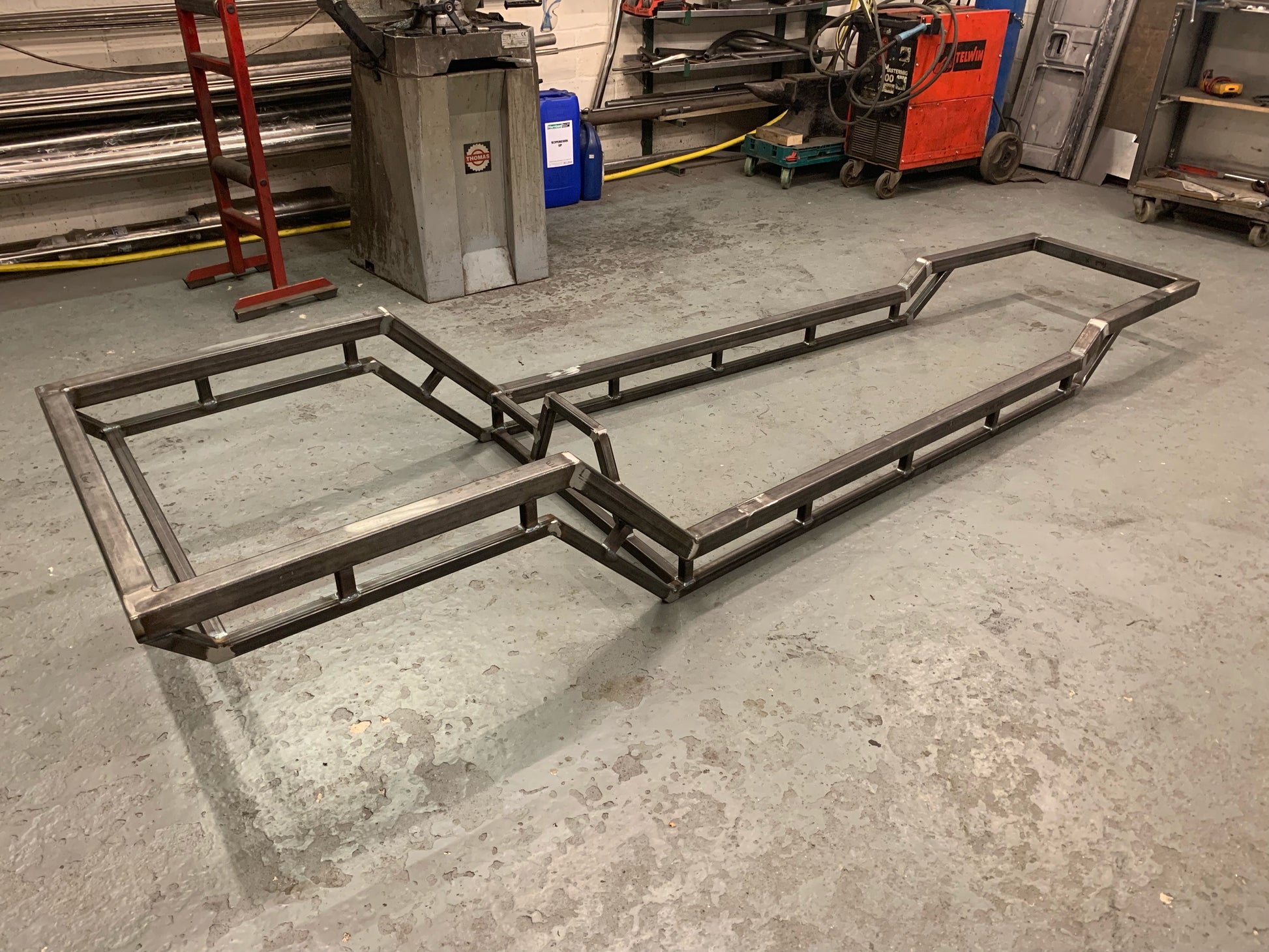

This chassis is a 2 tier chassis. The upper tier is constructed from 50mm x 50mm and the lower tier is constructed from 30mm x 30mm. The 2 tiers are tied together with 25mm x 25mm uprights.
There is an integrated prop shaft hoop which doubles up as a crossmember.
The chassis has a small front kick up which allows for fitment of a variety of different front suspension types. We offer the chassis with the lower tier shortened at the front kick up to give more space when fitting a live front axle (beam or tube axle).
The rear kick up is a medium size and is best suited to fitment of an independent rear suspension.
Bespoke work is non refundable and the customer is responsible for supplying correct measurements and information at the point of order. Wisbech Engineering Ltd will not undertake responsibility or liability for customers errors.
